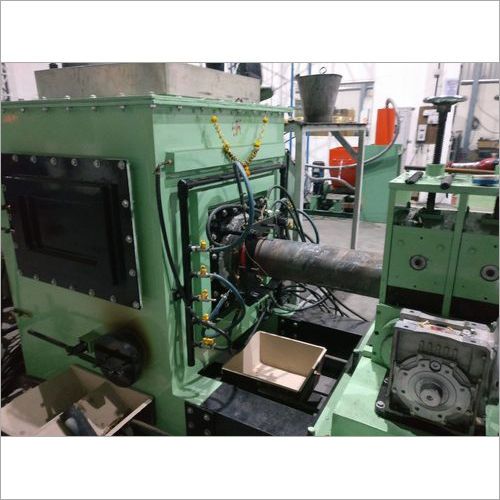

Tube Casting Machine

Get a Price/Quote

MOQ : 1 Unit

Tube Casting Machine Specification

Frame Type
Heavy Duty Steel Frame

Connectivity Options
Standard Interface Panel

Control System
PLC Controlled

Machine Type
Horizontal Casting Machine

Motor Power
7.5 HP

Power Rating
15 kW

Cooling System
Water Cooled

Accuracy
0.1 mm

Voltage
380 V

Frequency
50 Hz

Drive
Electric Motor Driven

Noise Level
<75 dB

WorkingSpeed
Adjustable, up to 30 m/min

Lubricating System
Automatic Lubrication System

Product Type
Tube Casting Machine

Technology
Automatic Casting Technology

Power Source
Electric

Operating Type
Automatic

Power
15 kW

Surface Treatment
Powder Coated

Dimension (L*W*H)
2200 x 900 x 1600 mm

Weight (kg)
1800 kg

Color
Industrial Blue/Grey

Usage & Applications
Tube Manufacturing, Pipe Industry, Industrial Casting

Tube Casting Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
Unit

Packaging Details
Wooden Box Packaging.

Main Export Market(s)
Australia, North America, South America, Eastern Europe, Middle East, Western Europe, Africa, Central America, Asia

About Tube Casting Machine

Tube Casting Machine

Owing to our qualified engineers, we have made a respected position in the market as a manufacturer, supplier and exporter of Tube Casting Machine. The offered machines are manufactured under the strict supervision of our diligent team of professionals. Find extensive usage in different industries including chemical and automobile, these machines are available in various technical specifications. This Tube Casting Machine is known in the market for its features that are as follows:

Sturdy construction
Dimensional accuracy
Less maintenance
Wear-resistant

Other details:

Graphite Elements Installed Inside the Furnace

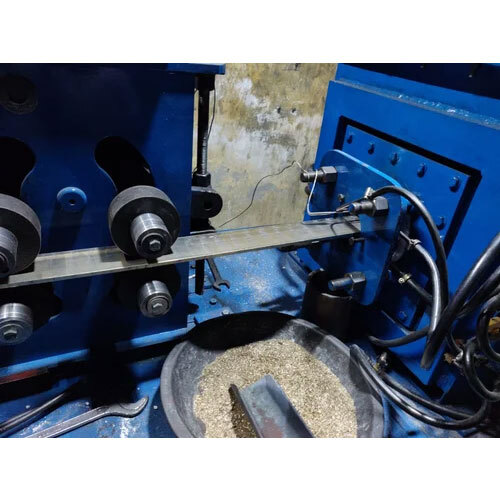

HORIZONTAL CASTING MACHINES are suitable for tube 40, 60, & 80 kg per hour machine. Horizontal casting of tube in Aluminium Bronze Gun Metals, High leaded Bronze, Tin Bronze, D.H.P Copper, Brass 63:37 & Brass 70:30 Tube is easily casted from Horizontal Continuous Casting Machine. This cast output is semi finished so after casting the material undergoes the secondary processing where some of machined material is made to burn.

from machined by CNC or ordinary process to complete the material for application in Automobile Industry, Refrigeration Industry etc.

Machine Range / Model	Power Rating (KVA)	Cru- cible Cap.	Rod Dia. Min-Max	Section width max.	Max no of Dies	Max no of strands	casting capacity kg/hr	Max Temp		Typical Application
VHC - 5	10	5	6-50	35	1	2	7	1400		Rod & Strip
VHC-10	15	7	6-50	35	1	2	10	1400	Rod, Strips, Sections & Tubes
VHC-20	35	15	10-70	75	1	3	20	1400
VHC-40	55	25	10-100	100	1	4	40	1400
VHC-60	75	70	12-125	100	2	4	60	1400
VHC-80	95	200	12-150	150	2	4	80	1400
VHC-150	125	500	19-200	350	2	6	150	1400	Wide Strip
VHC-250	170	80	25-200	350	2	8	250	1400	Wide Strip

Precision and Efficiency in Tube Casting

Experience high-accuracy tube casting with automatic technology and electric motor drive, providing consistent output for pipe industries. The machines adjustable speed and PLC control offer superior flexibility, allowing manufacturers to cater to varying production requirements while maintaining precision and reliability.

Robust Construction for Industrial Demands

Built with a heavy-duty steel frame and finished with powder coating, this horizontal machine assures longevity in demanding environments. Its water-cooled system and automatic lubrication minimize maintenance and maximize uptime, making it suitable for continuous operation in large-scale tube production.

FAQs of Tube Casting Machine:

Q: How does the automatic casting technology improve tube manufacturing efficiency?

A: The automated casting technology reduces manual intervention, ensuring uniform tube dimensions and surface quality. The PLC control system allows seamless operation, and the adjustable speedup to 30 m/minhelps manufacturers optimize production rates while maintaining high accuracy.

Q: What is the process for operating the Tube Casting Machine?

A: Operators initiate the machine via the PLC interface, set desired parameters for speed and dimensions, and use the standard interface panel for adjustments. The electric motor drives the machine while automatic lubrication and water cooling systems run continuously, ensuring smooth and precise casting.

Q: Where can this Tube Casting Machine be installed for optimal performance?

A: This machine is designed for installation in industrial tube and pipe manufacturing facilities, casting plants, or production workshops equipped with a suitable power supply (380 V, 50 Hz) and adequate space for its dimensions (2200 x 900 x 1600 mm).

Q: What are the main applications of this machine within the pipe industry?

A: The Tube Casting Machine is used for manufacturing high-quality tubes and pipes, serving pipe industries, industrial casting applications, and facilities requiring consistent, precision-engineered tubular products.

Q: What benefits does the PLC-controlled system offer to users?

A: A PLC-controlled system enhances user control, simplifies adjustments, automates complex processes, and improves consistency in tube production, reducing error rates and enabling easy integration into existing automated manufacturing lines.

Q: How does the machine maintain low noise levels during operation?

A: The machine incorporates advanced electric drive technology and precision engineering, maintaining noise emissions below 75 dB. Additional features like automatic lubrication and robust frame design contribute to its quiet operation, making it suitable for industrial environments with strict noise requirements.

Q: What maintenance procedures should be followed for optimal machine performance?

A: Routine maintenance includes monitoring the water cooling system, ensuring the automatic lubrication system is functioning, checking the electrical connections, and inspecting the powder-coated surfaces for wear. Adhering to these procedures helps extend machine life and sustain performance.
