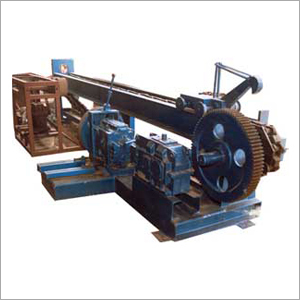

Industrial Drawing Machinery

Get a Price/Quote

MOQ : 1 Unit

Industrial Drawing Machinery Specification

Control System
PLC Control Panel

Features
Robust Frame, Energy Efficient, User Friendly Interface

Production Capacity
2500 kg/hr

Lubricating System
Automatic

Drive
AC Frequency Drive

Power Rating
15 kW

Frame Type
Heavy Duty Welded Body

Machine Type
Drawing Machine

Connectivity Options
Ethernet, USB Interface

Cooling System
Water Cooled

Accuracy
0.01 mm

Frequency
50/60 Hz

Motor Power
15 kW

Noise Level
Less than 75 dB(A)

Product Type
Industrial Drawing Machinery

Power Source
Electric

Operating Type
Automatic

Power
15 kW

Pressure
Adjustable up to 100 MPa

Surface Treatment
Powder Coated

Dimension (L*W*H)
3400 mm x 1200 mm x 1800 mm

Weight (kg)
2500 kg

Color
Industrial Blue & Silver

Usage & Applications
Metal Wire Drawing and Shaping

Industrial Drawing Machinery Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
Unit

Packaging Details
Wooden Box Packaging.

Main Export Market(s)
Australia, North America, Eastern Europe, Africa, Central America, Middle East, South America, Western Europe, Asia

About Industrial Drawing Machinery

We are an ISO 9001:2008 certified organization, engaged in manufacturing, supplying and exporting Drawing Machinery. By utilizing optimum-grade components and allied materials, we are able to develop this machinery at our modern infrastructure facility. This machinery is widely used to cut and straighten drawn coil bundle into equal and straight length. Owing to our vast distribution network, we are able to deliver this Drawing Machinery at clients' destination within committed time frame.

Key Features:

Compact designs
Corrosion resistant
Rugged construction
Smooth operations

Other details:

Viva Casters specializes in making drawing machinery for Rod & Wire Drawing with Tube and Strip. Drawing Machinery gives you the solution for the secondary process of straightening and pointing and drawing the semi-finished product from the casters.

Draw Bench is made 5 feet X 60 feet long & wire drawing spool made in single and double die system, Bull block system for wire drawing fitted with water cooling to increase drawing machine die life.

Precision Engineering for Maximum Output

Designed for rigorous industrial environments, this automatic drawing machine guarantees reliable performance. Its robust frame, high power rating, and advanced PLC control system combine to ensure metal wires are drawn to exact specifications efficiently and consistently, resulting in superior shaping and productivity.

Advanced Technology and User-Friendly Features

Equipped with an intuitive PLC control panel and connectivity options like Ethernet and USB, this machine simplifies operation and monitoring. The automatic lubricating system, water-cooled design, and noise-reducing construction provide a safe and comfortable working environment, optimizing maintenance and reducing downtime.

FAQs of Industrial Drawing Machinery:

Q: How does the adjustable pressure feature enhance metal wire drawing?

A: The machines pressure adjustment capability, up to 100 MPa, allows operators to tailor the drawing process for different metals and desired wire profiles. This flexibility ensures optimal shaping, improved material quality, and adaptability to specific industrial requirements.

Q: What benefits arise from the automatic operating type and PLC control system?

A: Automatic operation and PLC control streamline production, minimize human error, and facilitate precise monitoring of parameters such as accuracy and speed. These features increase output efficiency and ensure consistently high-quality results across large production runs.

Q: When is water cooling necessary during metal wire drawing processes?

A: Water cooling is essential during high-pressure, high-speed wire drawing to dissipate heat generated by friction and deformation. It protects machinery components and maintains operational stability, ensuring prolonged equipment lifespan and consistent product quality.

Q: Where can this industrial drawing machine be integrated for optimal results?

A: This machine is ideal for installation in metal fabrication facilities, wire manufacturing plants, and industrial workshops where high-volume, accurate wire shaping is needed. Its connectivity options and compact design facilitate seamless integration with existing production lines.

Q: What is the process flow for using the drawing machine efficiently?

A: The process begins with feeding metal wire into the machine, where pressure, speed, and shaping parameters are set via the PLC control panel. The wire passes through the drawing mechanism, cooled by water and automatically lubricated, resulting in precise shaping with 0.01 mm accuracy.

Q: How does the energy-efficient design benefit factory operations?

A: The energy-efficient 15 kW motor and AC frequency drive reduce electricity consumption without compromising performance. This lowers operational costs and supports sustainable manufacturing practices, benefiting both productivity and environmental impact.
